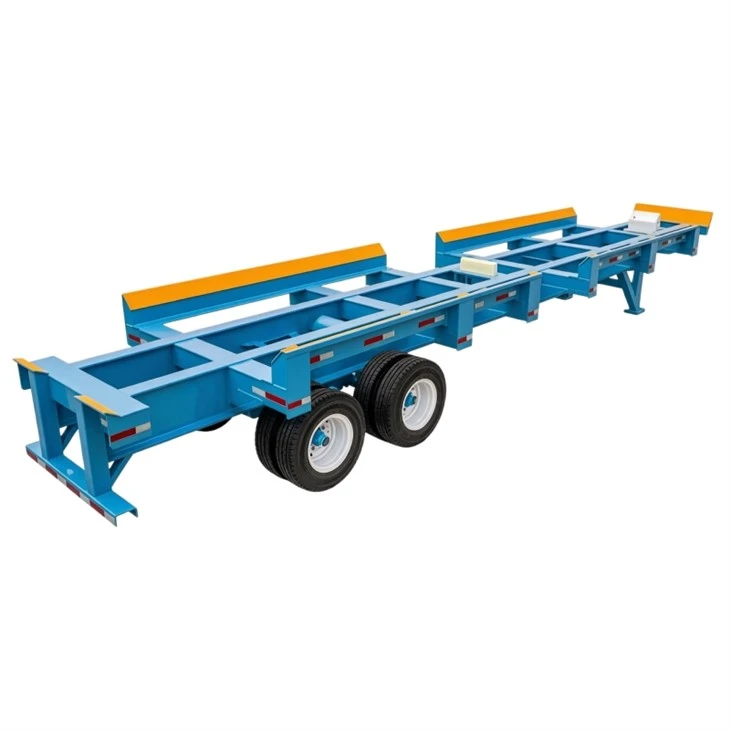

SLMC 45FT Bombcarts Trailer nrog Ob Axles

Lub SLMC 45FT Bombcarts Trailer yog lub hom phiaj- tsim los tuav 45ft thawv, thaum tseem txhawb nqa 20ft thiab 40ft qhov ntau thiab tsawg. Tsim los rau cov chaw nres nkoj tsis khoom, nws muaj ob lub - qag teeb thiab cim meej rau tus kheej - nrhiav cov lus qhia.

Cov lus qhia no ua rau kev thauj khoom ISO ntim ceev heev, pab koj txiav cov sij hawm voj voog thiab ua kom koj cov haujlwm ua haujlwm zoo. Ntau tshaj li cov chaw tsim khoom, SLMC yog koj tus khub mob siab rau, muab cov kev daws teeb meem tiav raws li koj cov kev xav tau tiag tiag.

Dimension

Zuag qhia tag nrho ntev	14, 130 mm
Dav dav	2, 720 mm
Tag Nrho Qhov Siab	H1 hli
Kingpin phaj siab	H1 hli
Qhov hnyav (Kev kam rau siab ± 3%)	Kwv yees li 8,300 kg
Them nyiaj	65,000 Kg
Main Beams	Q355, Fabricated I-beam, Sab saum toj flanges: 20mm, hauv qab flanges: 20mm, Web: 8mm

Khiav Gear & Frame

tsaws ceg	JOST E100
King pin	JOST 2.0 "
Kev ncua	2-axle tswj txhua yam kev ncua
Axles	FUWA 16 tuj, 2 qag
Log tsheb	11.00-20, equip 8pcs per chassis, nto moo hom los ntawm Tuam Tshoj, xaiv los ntawm Hoobkas
Rim	8.0-20, 8 pcs
Nres system	30/30 hom ntawm ob qag, WABCO nres valve
Hluav taws xob System	24V teeb pom kev zoo nrog modular thaiv hlua . 7 ncej ntsaws tso rau pem hauv ntej.
Txheej	110μmm, Yeem los ntawm lub Hoobkas
Xim	Yeem los ntawm cov neeg siv khoom

Ntsiab nta & qhov zoo

1.Optimized rau 45-foot Shipping Containers Suits ob qho tib si insulated refrigerated ntim thiab tsis tu ncua cargo thawv ntawm 45-ko taw loj. Lub thickened bearing thav duab muab ruaj khov clamping quab yuam kom nres lub thawv xa khoom thaum thauj.
2.Superior Flexibility rau cov neeg coob coob Terminals Shortened qag spacing tsim ib tug tsawg kawg nkaus tig lub voj voog. Cov neeg khiav dej num tuaj yeem taug kev nqaim ntawm lub davhlau ya nyob twg thiab hla cov cuab yeej nqa tau zoo kom tsis txhob muaj kev sib tsoo.
3.Sturdy Tsim kom ntev -Lub Sijhawm Kev Pabcuam Hnyav load-cov kabmob steel underframe txhawb nqa siab tshaj 70-ton payload tsis tu ncua. Multi-txheej txheej tiv thaiv corrosion tiv thaiv ntsev pos huab thiab ntub dej hiav txwv ua haujlwm ib puag ncig zoo.
4.Efficient Container Fixing Operation Perfectly matched with all terminal lifting machinery and handles trucks. Mechanical thiab hydraulic locking pins yog xaiv los ua kom tiav lub thawv fastening nyob rau hauv mere moments. Cov cuab yeej ncaj nraim sib txuam
5.Ntxiv cov khoom pab ntxiv tsis tas yuav tsum tau ua. Qhov kev thauj khoom chassis no tuaj yeem txuas ncaj qha nrog cov tsheb laij teb tseem ceeb thiab sib koom ua ke rau hauv koj cov khoom siv tam sim no tsis muaj zog.

Cov ntawv thov tseem ceeb

Lub 45ft Bombcarts semi-trailer yog ib qho khoom siv tseem ceeb hauv cov chaw nres nkoj niaj hnub thiab kev thauj mus los, feem ntau yog siv hauv cov xwm txheej hauv qab no:
1. Hloov 45ft thawv ntawm qhov chaw nres nkoj berths, thawv Bombcarts s, thiab chaw soj ntsuam kev lis kev cai;
2. Kev khaws cia thiab thauj cov thawv ib ntus hauv cov chaw logistics thiab thaj chaw sib koom ua ke;
3. Kev thauj khoom thiab thauj khoom ntim ntawm Bombcarts cia Bombcarts s thiab ntev -cov tsheb thauj khoom lossis cov tsheb ciav hlau;
4. Txhawb nqa kev tuav cov thawv ntim khoom hnyav hauv cov chaw ua si thiab loj - cov tsev khaws khoom loj uas nyob ib sab ntawm cov chaw nres nkoj.

Nrog nws cov kev ua tau zoo, muaj zog yoog tau, thiab kev ua haujlwm siab, 45ft Bombcarts semi-trailer ua lub luag haujlwm tseem ceeb hauv kev ua kom zoo dua Bombcarts cov txheej txheem, txo cov nqi tuav, thiab txhim kho tag nrho cov kev ua haujlwm ntawm cov thawv Bombcarts.
