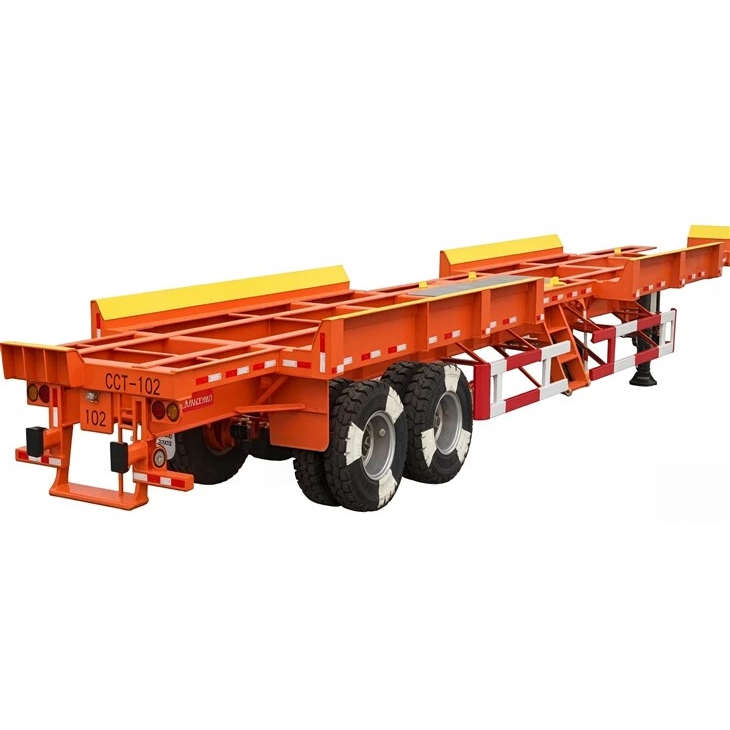

SLMC 45FT Yard Trailer nrog Ob Axles

Nruab nrab- qhov loj ntawm ntug hiav txwv cargo terminals feem ntau yuav tsum tau luv luv- qhov deb ntawm lub thawv txav ntawm qhov chaw ua haujlwm thiab chaw cia khoom ib ntus, nrog qhov nruab nrab qis rau ib - lub thawv tonnage xav tau. Peb lub dual - qag 45ft dock trailer siv lub teeb yuag hollow thav duab qauv los txiav qhov hnyav tuag thiab txiav roj noj los ntawm 28%, zoo tagnrho rau kev sib tshuam luv luv - kev thauj khoom thauj mus los hauv thaj chaw ua haujlwm. Nruab nrog ua - nyob rau hauv pem hauv ntej txwv stoppers, nws ua rau ib tug - kauj ruam thawv ruaj ntseg yam tsis tau rov kho dua, ua rau nws zoo heev rau nruab nrab - cov chaw nres nkoj loj tuav tsawg dua 8,000 TEUs ib hnub twg. Peb muab lub teeb yuag, tus nqi- cov kev daws teeb meem kev thauj mus los tau zoo rau cov chaw me me thiab nruab nrab- qhov loj me ntawm ntug hiav txwv logistics terminals thoob plaws ntiaj teb.

Dimension

Zuag qhia tag nrho ntev	14, 130 mm
Dav dav	2, 720 mm
Tag Nrho Qhov Siab	H1 hli
Kingpin phaj siab	H1 hli
Qhov hnyav (Kev kam rau siab ± 3%)	Kwv yees li 8,300 kg
Them nyiaj	65,000 Kg
Main Beams	Q355, Fabricated I-beam, Sab saum toj flanges: 20mm, hauv qab flanges: 20mm, Web: 8mm

Khiav Gear & Frame

tsaws ceg	JOST E100
King pin	JOST 2.0 "
Kev ncua	2-axle tswj txhua yam kev ncua
Axles	FUWA 16 tuj, 2 qag
Log tsheb	11.00-20, equip 8pcs per chassis, nto moo hom los ntawm Tuam Tshoj, xaiv los ntawm Hoobkas
Rim	8.0-20.8 pcs
Nres system	30/30 hom ntawm ob qag, WABCO nres valve
Hluav taws xob System	24V teeb pom kev zoo nrog modular thaiv hlua . 7 ncej ntsaws tso rau pem hauv ntej.
Txheej	110μmm, Yeem los ntawm lub Hoobkas
Xim	Yeem los ntawm cov neeg siv khoom

Ntsiab nta & qhov zoo

1.Lub teeb yuag hollow dual- qag chassis ua tau zoo txo cov tsheb hnyav thiab txo cov roj noj txhua hnub txog li 28%.

2.Ua tau-nyob rau hauv txwv txwv tsis pub ua tiav lub thawv ceev ceev uas tsis tas yuav rov ua phau ntawv zoo dua-tuning.

3.Nws qhov kev lag luam zoo sib xws yog qhov zoo rau nruab nrab - cov chaw nres nkoj loj uas tuav tsawg dua 8,000 TEUs ib hnub.

Cov ntawv thov tseem ceeb

Lub 45ft yard semi-trailer ua haujlwm ua haujlwm tseem ceeb rau cov chaw nres nkoj tam sim no thiab cov lag luam thauj khoom, suav nrog kev siv hauv qab no:
1.Haul 45ft shipping ntim thoob plaws chaw nres tsheb, stacking ntau thiab kev lis kev cai kuaj koog tsev kawm ntawv
2. Nqa thiab tso cov thawv ntim ib ntus hauv cov chaw thauj khoom thiab cov cheeb tsam chaw khaws cia
3.Shift lub thawv ntim khoom nruab nrab ntawm thaj chaw stacking, intercity lorries thiab rail thauj carriages
4.Ua raws li hnyav- lub thawv ntim khoom thauj khoom xav tau ntawm chaw nres nkoj- thaj chaw Hoobkas nyob ib sab thiab chaw cia khoom loj

Kev xa khoom xa tuaj

Kev daws teeb meem
Peb qhov chaw nres nkoj thauj yob trailer txais ob txoj kev thauj dej hiav txwv loj. Kev txiav txim loj loj raug xa los ntawm ro-ro nkoj ncaj qha, thaum ib tus neeg txiav txim me me yuav raug txiav thiab ntim rau hauv cov thawv ntim khoom txheem. Txhua lub tshuab yog qhwv thiab ruaj khov kom tsis txhob muaj kev puas tsuaj los yog kev puas tsuaj thaum lub caij hla hiav txwv ntev.

2. Thawv Thauj Khoom 2 units hauv 1x45HC, tag nrho cov nres thiab cov khoom hauv qab tsis sib dhos, siv cov ntsia hlau txuas:

Kev Paub Thiab Kev Ua Lag Luam

Peb SLMC 45FT ob- qag yard trailer yog xa tawm mus rau Middle East, Latin America, Africa, Southeast Asia thiab Europe. Customized rau cov vaj tsev hauv zos, nws tau txais kev lees paub dav dav los ntawm cov neeg siv khoom thoob ntiaj teb

product-1271-489

Peb Kev Ua Haujlwm Zoo

Hauv 12 lub hlis txij li hnub xa khoom mus rau qhov chaw nres nkoj xa khoom.

product-1424-152

Daim ntawv thov

1.Kev thauj mus los 45ft ntim ntawm cov chaw nres nkoj thiab thaj chaw kev lis kev cai
2.Tau cov thawv rau hauv cov chaw logistics thiab cov chaw sib koom ua ke
3.Shift ntim ntawm cov yards, tsheb thauj khoom thiab tsheb ciav hlau
4. Ua haujlwm hnyav ntawm warehouses thiab industrial parks
